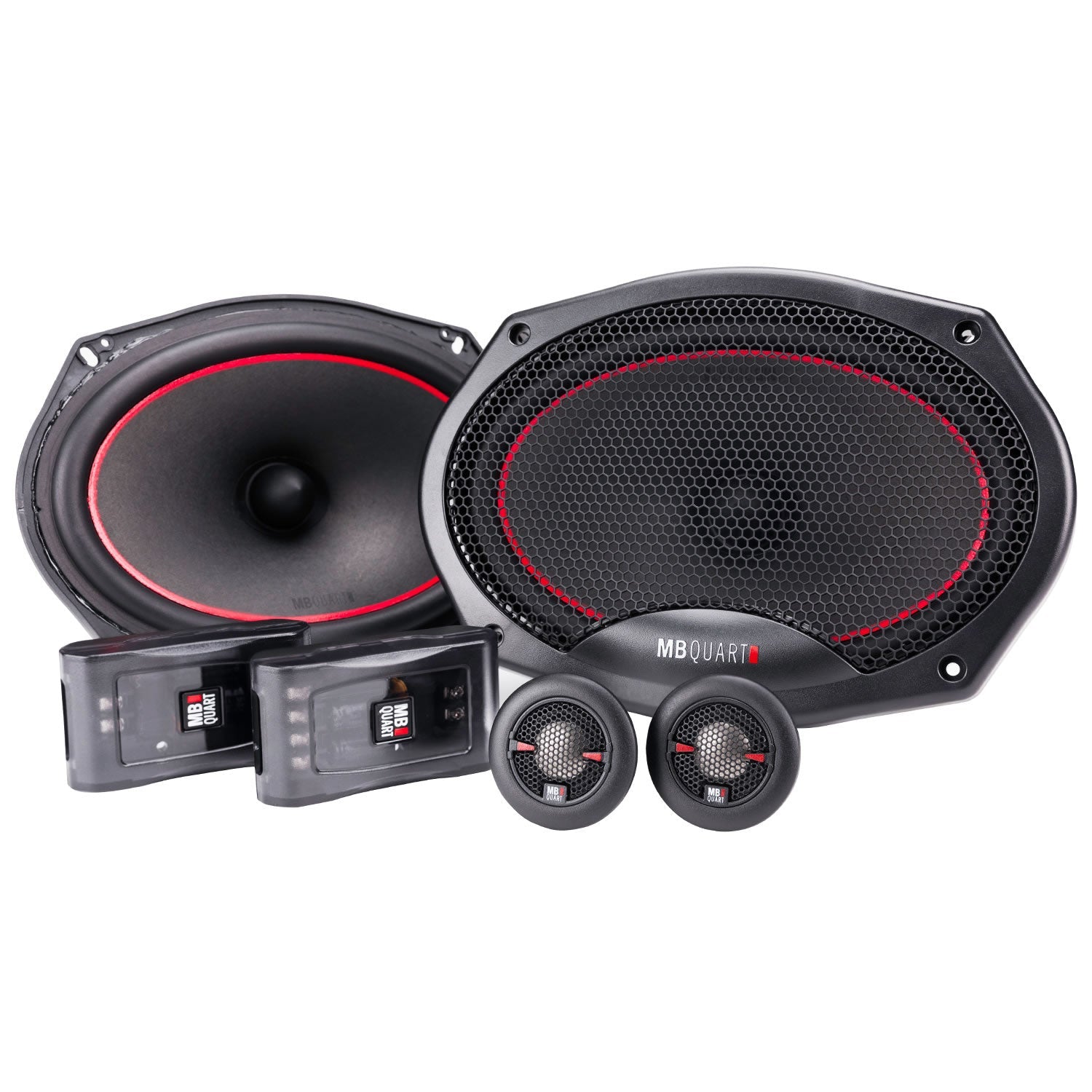

MB Quart RS1-269 Reference 6×9 Inch Speaker System

6×9″ Reference Component 2-Way speakers engineered with .75″ Titanium dome WideSphere™ Technology Tweeters with lightweight craft pulp Bamboo fiber cones mounted to an inert frame (which adds no harmonic distortions). The components system features an audiophile external crossover network.

General Features:

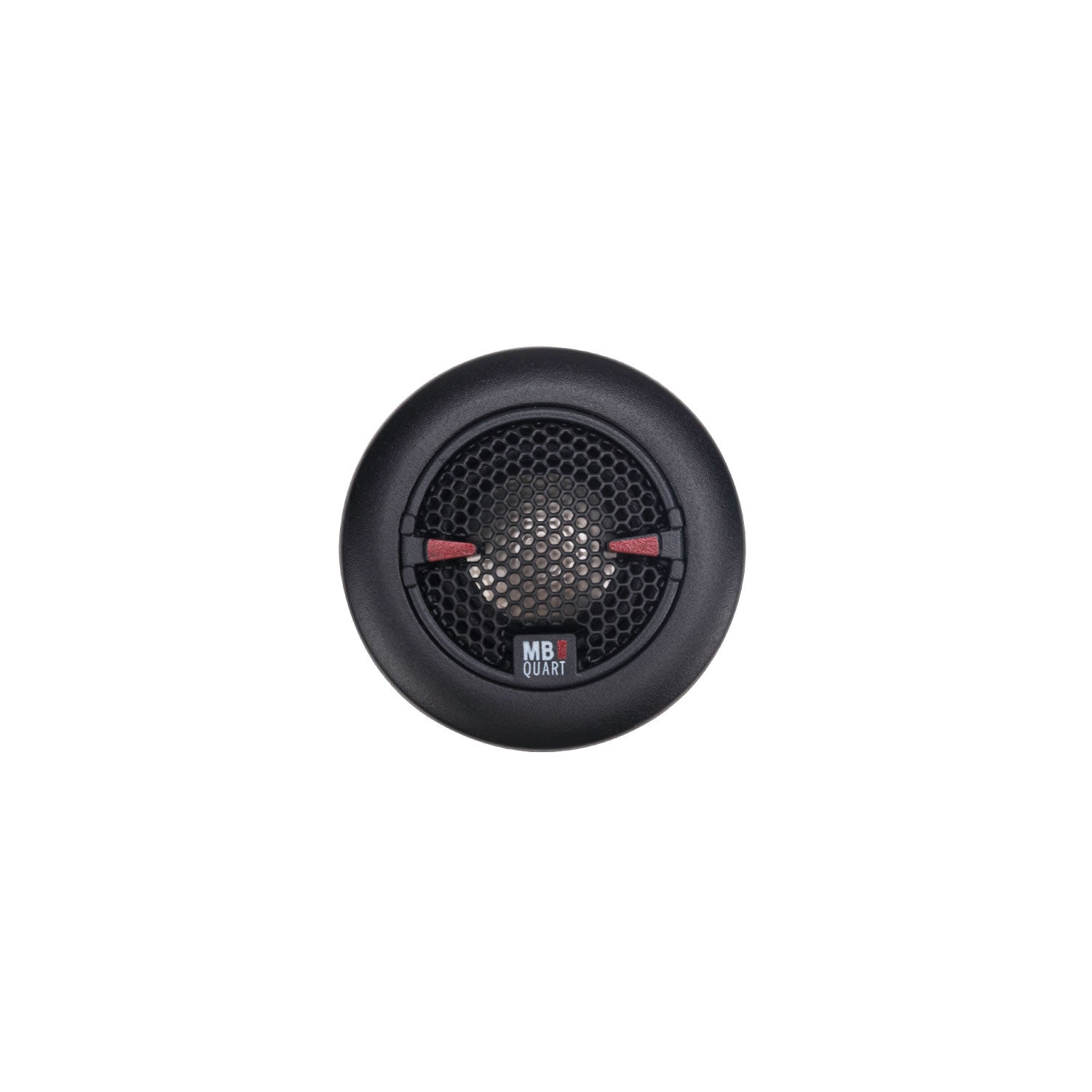

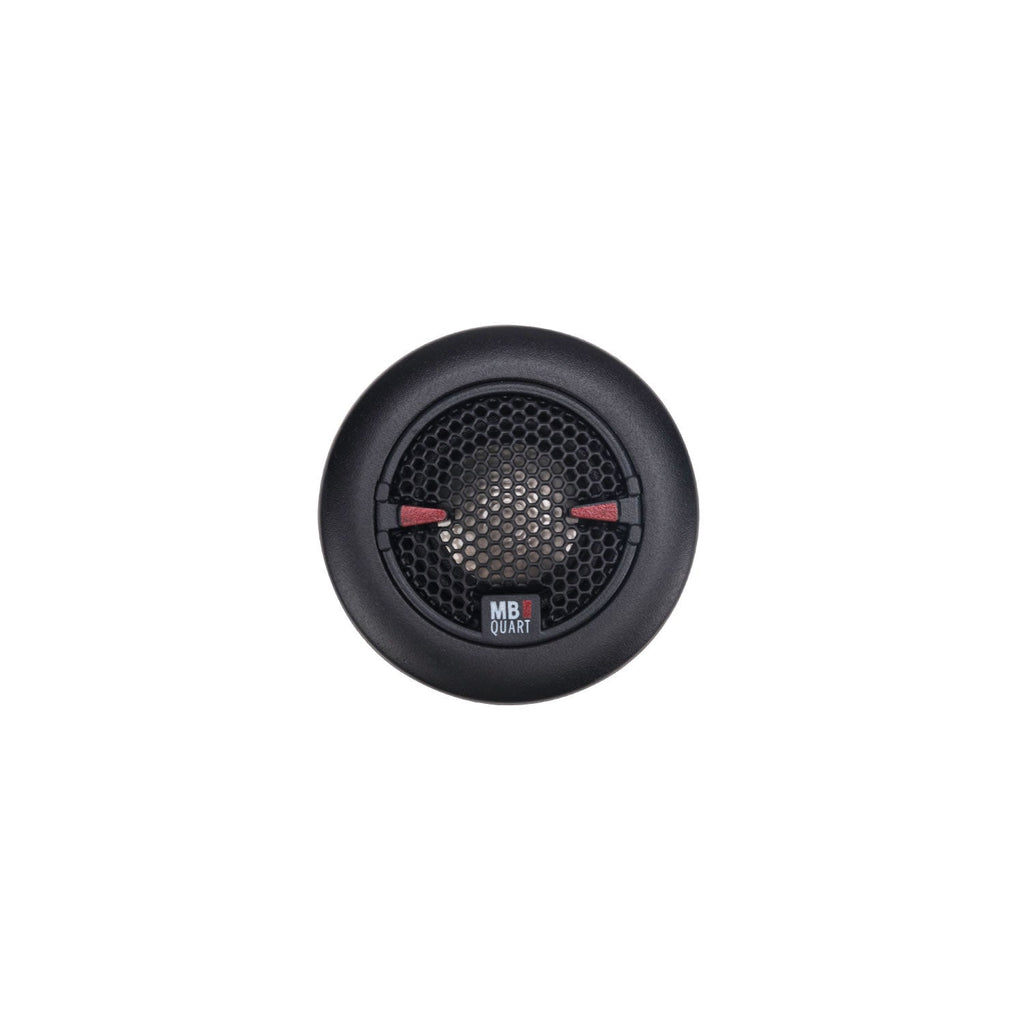

• Tweeters
  .75" titanium dome tweeters utilizing WideSphere™ Technology for exceptional musical reproduction of high frequencies are the heart of the system. The innovative tweeter design develops an off-axis dispersion pattern that creates a larger sound stage which brings a concert in your car to life.

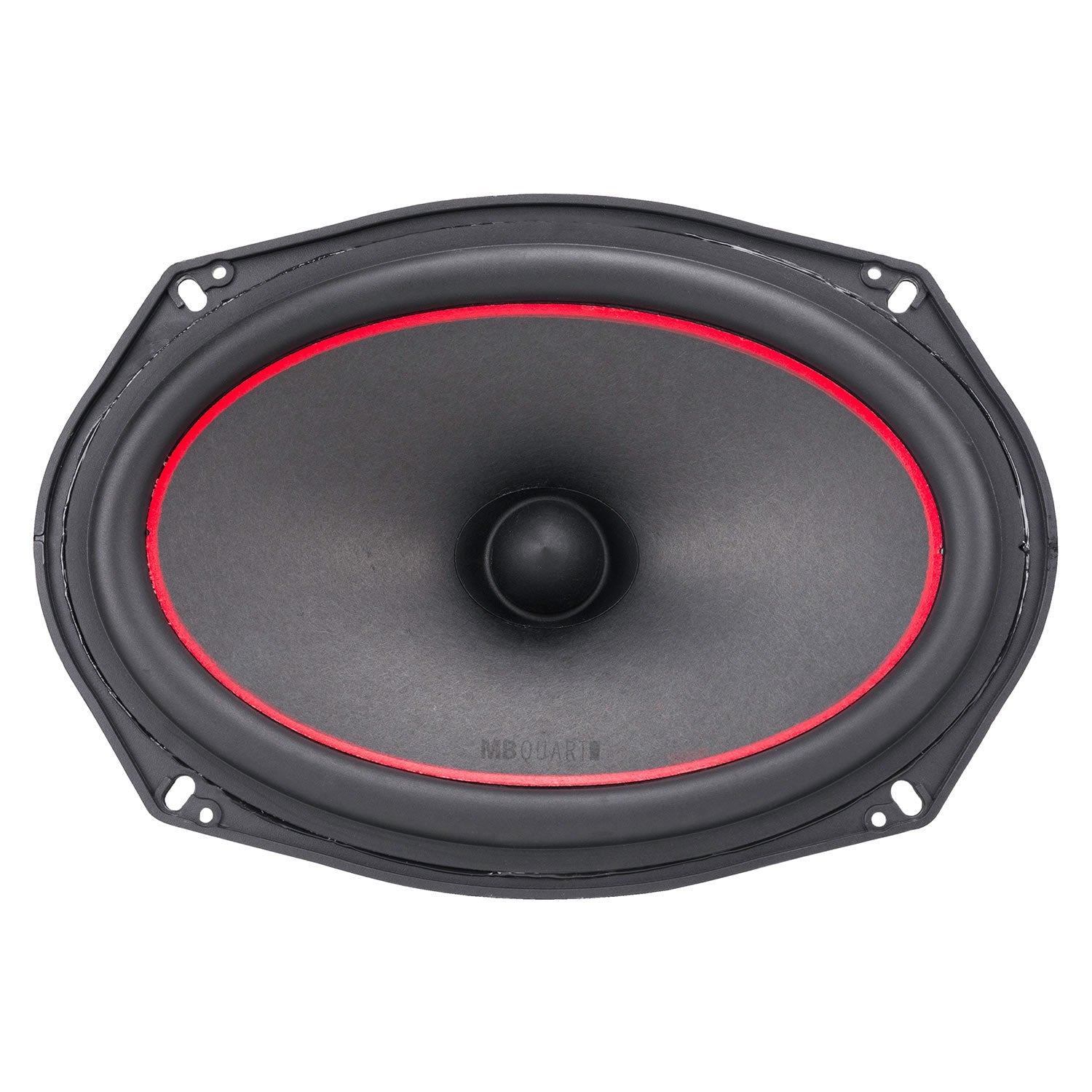

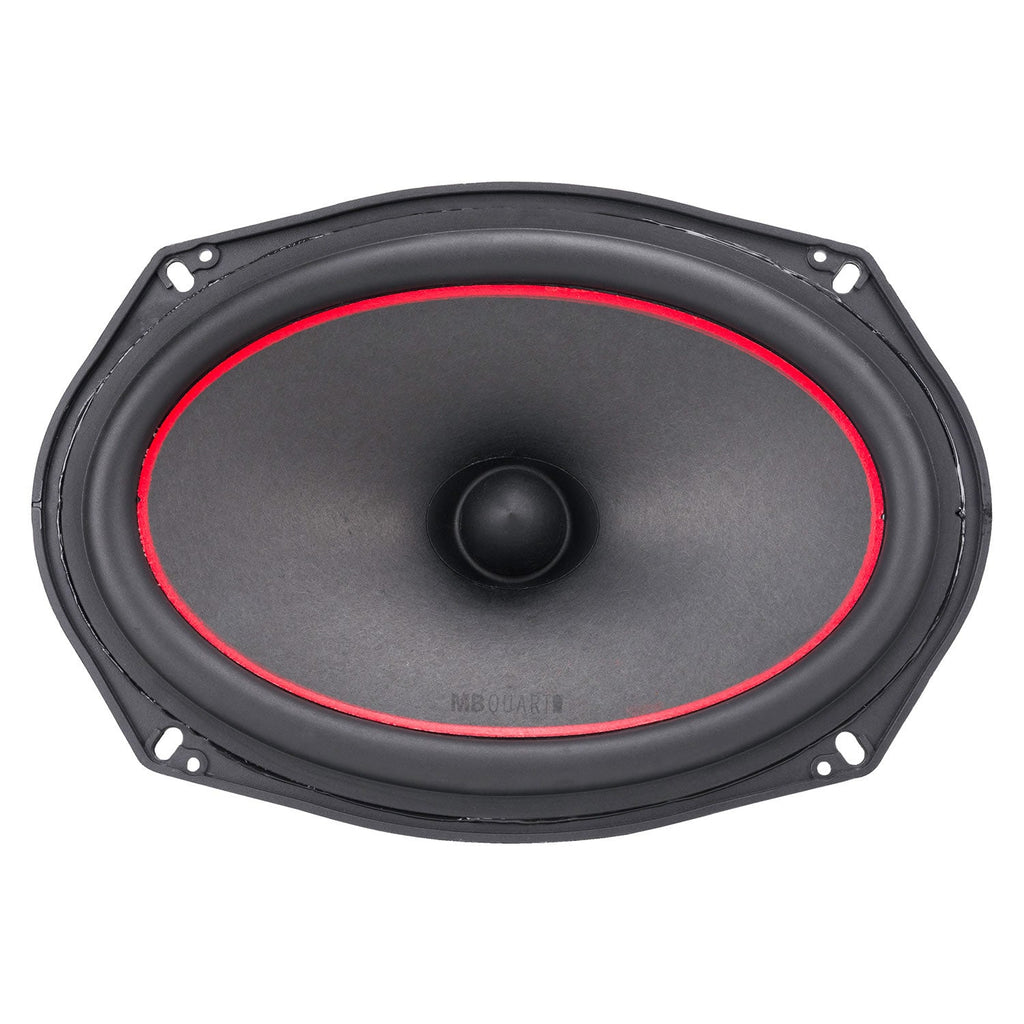

• Cone Material
  The speaker is engineered with a Lightweight Curvilinear craft pulp with bamboo fiber cone. This design adds strength and superior bass frequency reproduction. This means that midrange and bass frequencies remain very musical without the distortions that can be caused by the cone flexing. With the curvilinear design the geometry is specifically engineered for best upper band midrange response which is critical for frequencies that are responsible for vocals and acoustic instruments like piano, guitar and percussion.
• Surround / Cone Coupling
  High temperature adhesives are utilized to keep the coupling from cone to surround fused. Adhesives are also impervious to cold weather.
• Gasket
  Molded Polymer Sealing gaskets are utilized to keep the speaker isolated from the mounting surface and improve protection from water and dust intrusion.
• Voice Coil / Former Assembly
  High temperature imported wire on Kapton former. The former is lighter than a standard speaker which allows the component to support slightly higher frequency extension and efficiency.
• Spider
  Red woven fiber cotton poly blend spider to stabilize the cone and voice coil in all musical situations.
• Cooling System
  Venting allows air passage through the spider and speaker frame ribs to exchange air over the voice coil. Tweeters feature Positive Thermal Coefficient (PTC) technology.

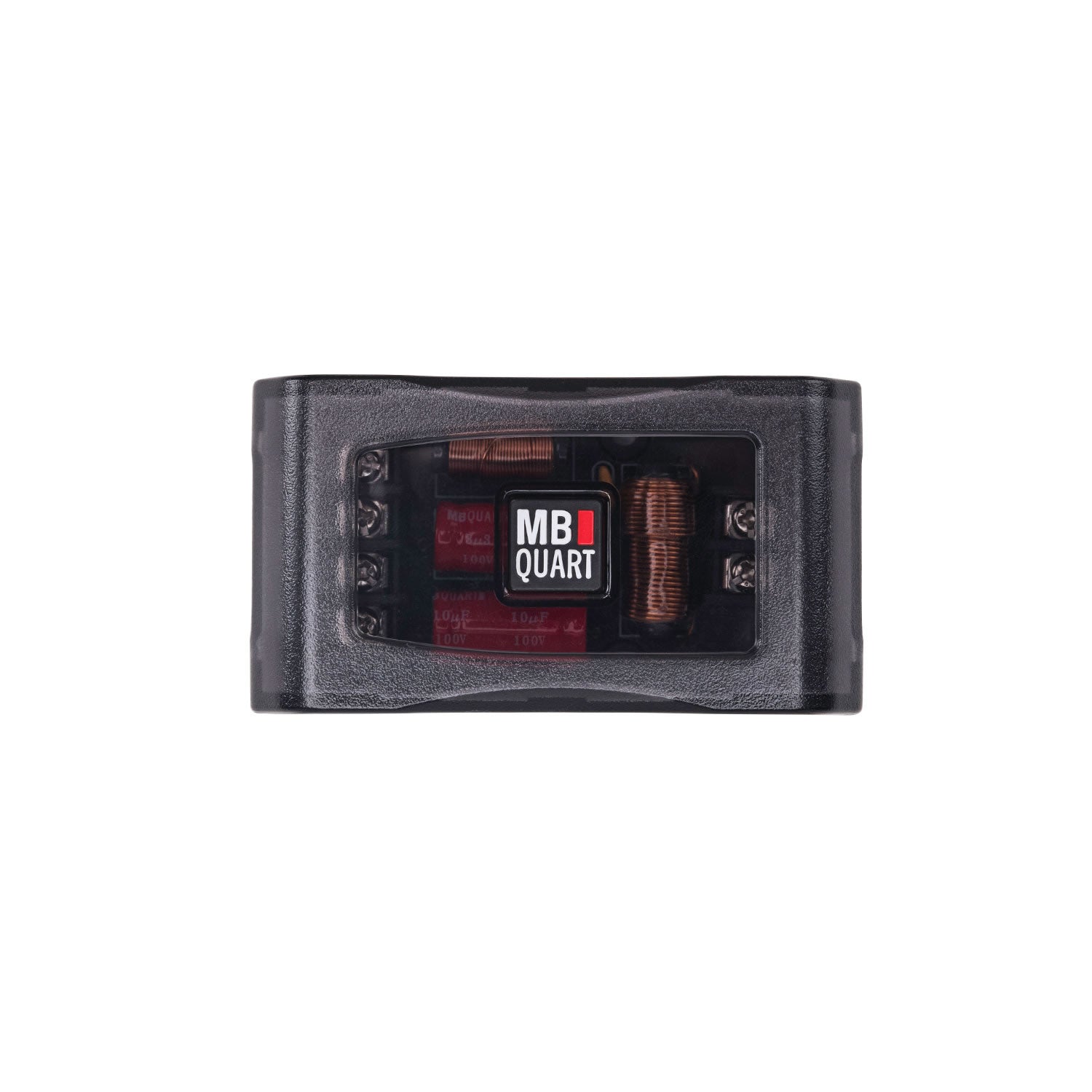

• External Component Crossover
  Reference component (2-way) designs feature an external audiophile crossover network which guides the frequencies from the amplifier to each driver (speaker). This system is designed with tight tolerance components for superb sound quality. These networks are passive Cauer topology Butterworth filter crossovers for a smooth transition of frequencies from midrange/mid-bass to the tweeter element designed into a compact crossover housing that can be easily hidden in the installation.
• Tweeter Hardware
  Hardware for surface mounting and flush mount the tweeter.

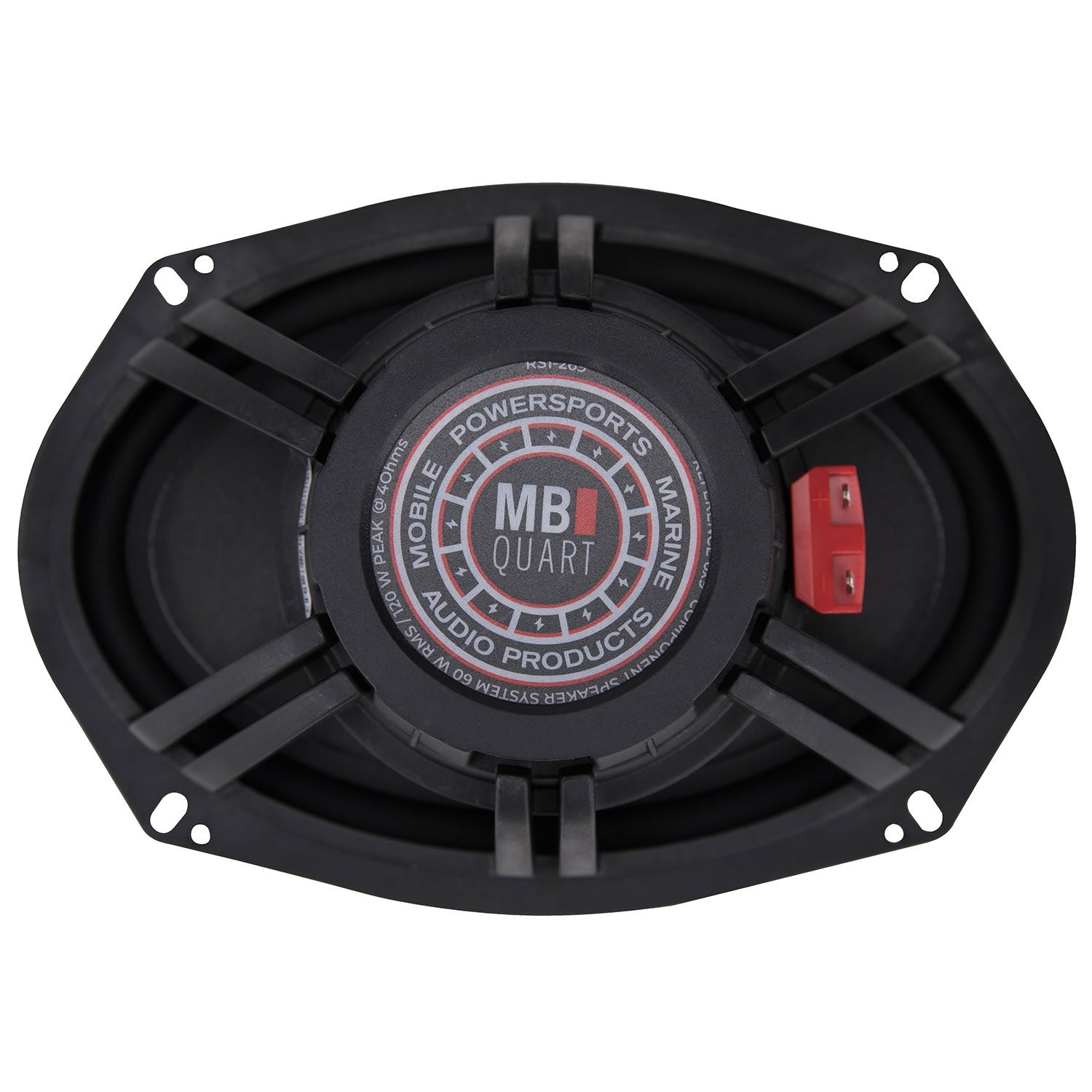

• Frame
  Aerospacce grade PA66 composite with 30% glass fiber speaker frame to assure that no harmonic distortions affect the tone of the speaker.

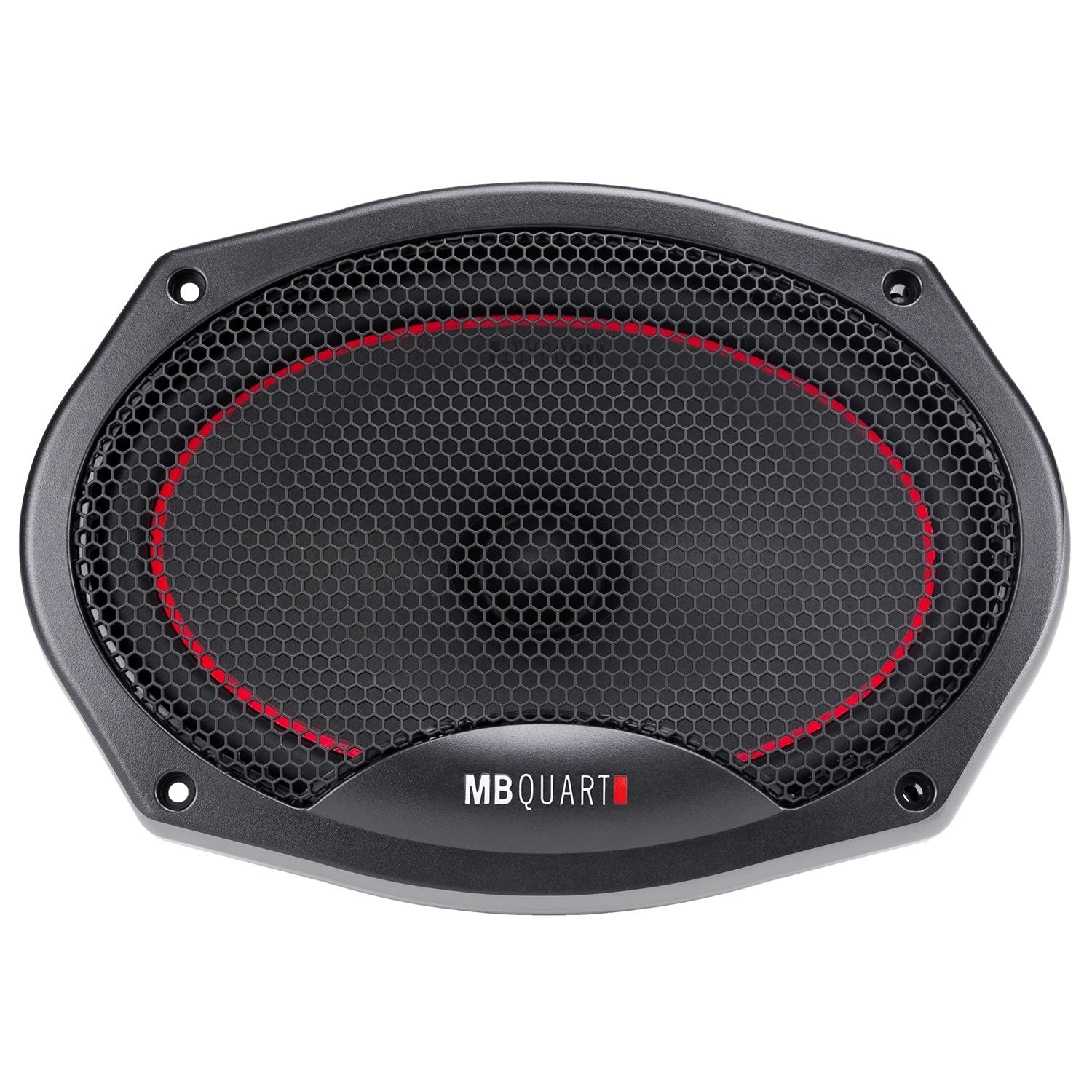

• Grills
  Included

Specifications:

• Type
  Speaker
• Brand
  MB Quart
• Series
  Reference
• Category
  Mobile
• Condition
  New
• Color
  Black
• Best Buy Available
  Yes
• Best Buy Link
  https://tinyurl.com/wogxw2c
• Warranty
  1 Year
• Speaker RMS Power Handling (watts)
  60/120 Each & System
• Speaker Peak Power Handling (watts)
  120/240 Each & System
• Speaker Impedance (ohms)
  4
• Speaker Frequency Response
  20Hz-22kHz
• Speaker Sensitivity
  88dB
• Speaker Crossover Slope
  12dB/octave
• Speaker Height (in)
  3.34
• Speaker Mounting Diameter / Cut Out (in)
  8.77 x 6.06
• Speaker Outside Diameter (in)
  9.44 x 6.61
• Speaker Mounting Depth / Chassis Depth (in)
  2.95
• Speaker Size (in)
  6 x 9
