Alpine S2-A55V 5-Ch Amp + 2 S2-S68 6x8" Speaker + S2-W12D4 12" Subwoofer + Accessory Bundle

Alpine S2-A55V 5-Channel Amplifier + (2) S2-S68 6x8" Speaker Pairs + S2-W12D4 12" Subwoofer + Absolute Accessory Bundle

Build a complete Alpine S-Series car audio system with the S2-A55V Hi-Res 5-channel Class-D amplifier, two pairs of S2-S68 6x8-inch coaxial speakers, and one S2-W12D4 12-inch dual 4-ohm subwoofer. This package provides dedicated amplification for four full-range speakers and a subwoofer from a single compact amplifier while delivering detailed highs, strong midrange performance, and powerful bass.

General Features

• Alpine S-Series Complete Amplified Speaker & Subwoofer System

• Includes S2-A55V 5-Channel Class-D Amplifier

• Includes Two Pairs / Four S2-S68 6x8" Coaxial Speakers

• Includes One S2-W12D4 12" Dual 4-Ohm Subwoofer

• Hi-Res Audio Certified Amplifier & Speakers

• Amplifier Frequency Response up to 40 kHz

• 40W RMS x 4 + 200W RMS x 1 at 4 Ohms

• 60W RMS x 4 + 300W RMS x 1 at 2 Ohms

• Built-In Selectable & Adjustable Crossovers

• H.A.M.R. Surround Technology

• Class-D Amplifier Efficiency

• Complete 4-Speaker + Subwoofer System

• Includes Absolute TW500 Super Tweeters

• Includes Absolute BT1700 Electrical Tape

• Includes Absolute Universal Mobile Phone Holder

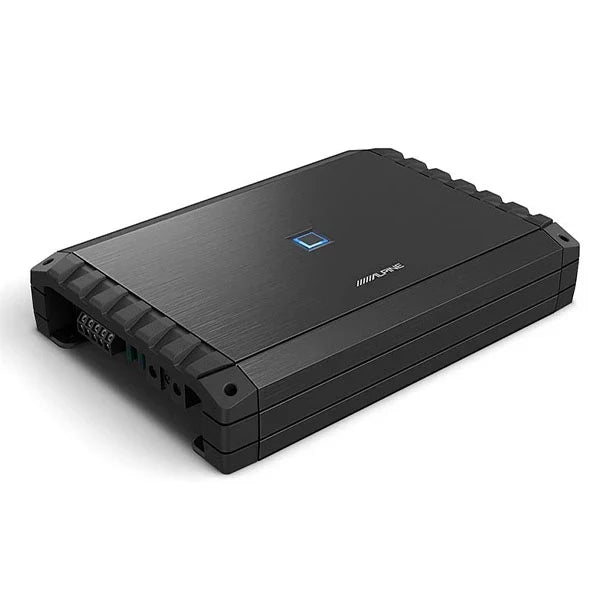

Alpine S2-A55V S-Series 5-Channel Class-D Amplifier

The Alpine S2-A55V delivers five channels of efficient Class-D amplification from one compact chassis, powering four full-range speakers and a dedicated subwoofer channel. Its Hi-Res Audio certification and wide frequency response make it an excellent foundation for a complete Alpine S-Series audio system.

Amplifier Power Specifications

• 5-Channel Class-D Amplifier

• 40 Watts RMS x 4 + 200 Watts RMS x 1 at 4 Ohms

• 60 Watts RMS x 4 + 300 Watts RMS x 1 at 2 Ohms

• 120 Watts RMS x 2 bridged at 4 Ohms

• Hi-Res Audio Certified

• Frequency Response: 20 Hz-40 kHz

• Signal-to-Noise Ratio: Greater Than 83 dB

• Damping Factor: Greater Than 100

• THD+N: Less Than 0.1% at 14.4V

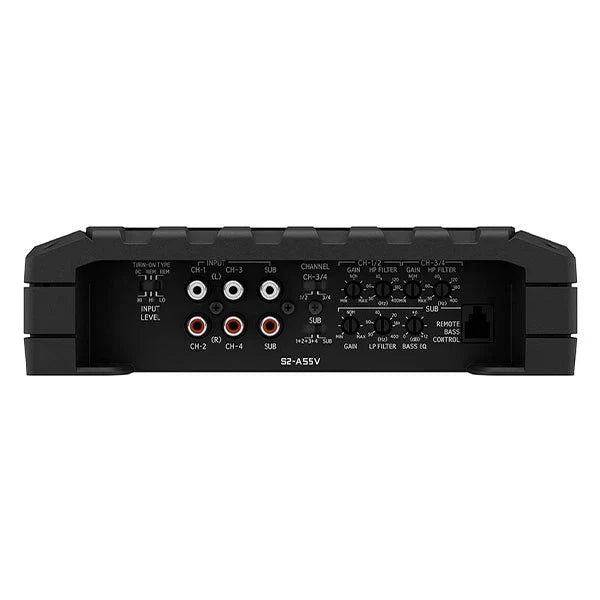

Amplifier Features

• Alpine Class-D Amplifier Circuit

• Five-Channel Full-System Design

• Dedicated Subwoofer Channel

• Built-In Selectable Crossovers

• Adjustable Crossover Controls

• Selectable Three-Position Remote Turn-On Circuit

• Designed for Factory & Aftermarket System Integration

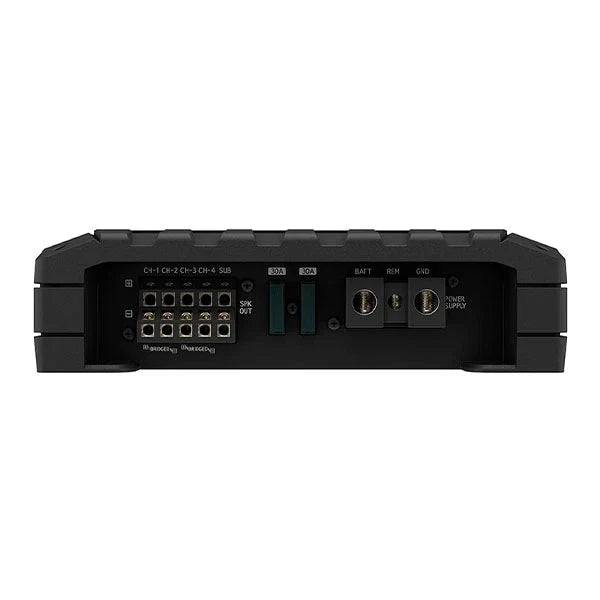

• Two-Sided Terminal Layout

• Compatible with Optional Alpine Remote Bass Controls

• RUX-KNOB.2 Compatible - Sold Separately

• RUX-H01 Compatible - Sold Separately

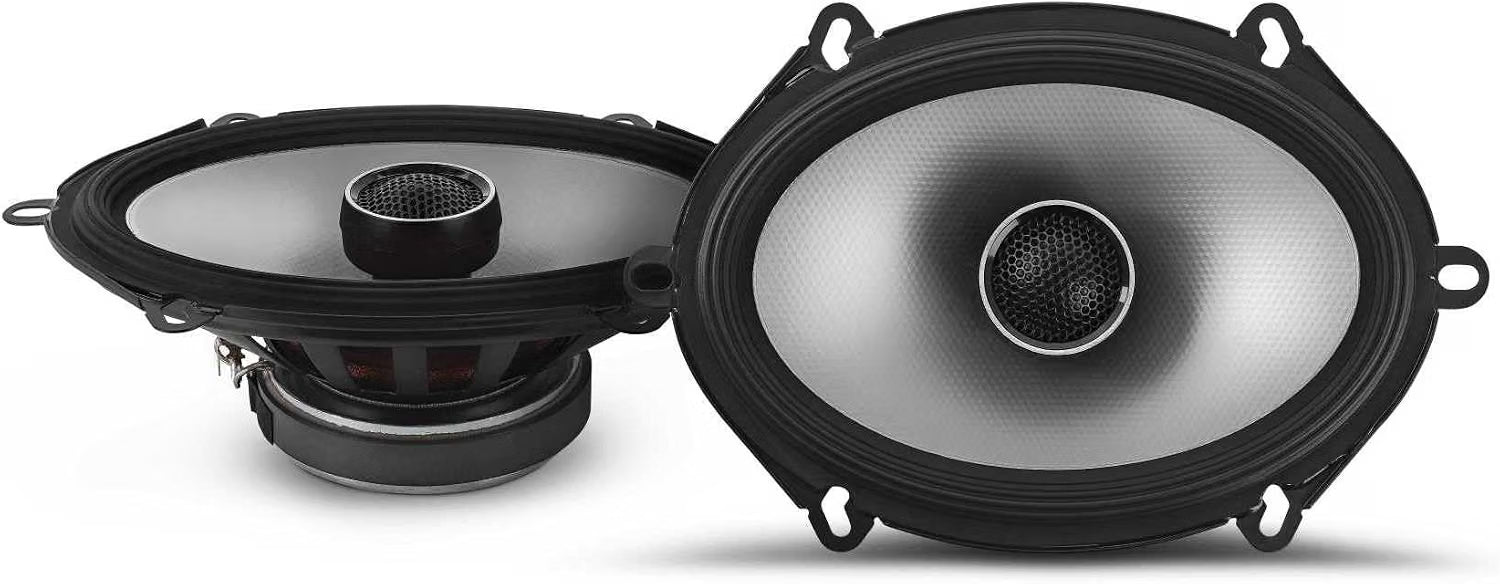

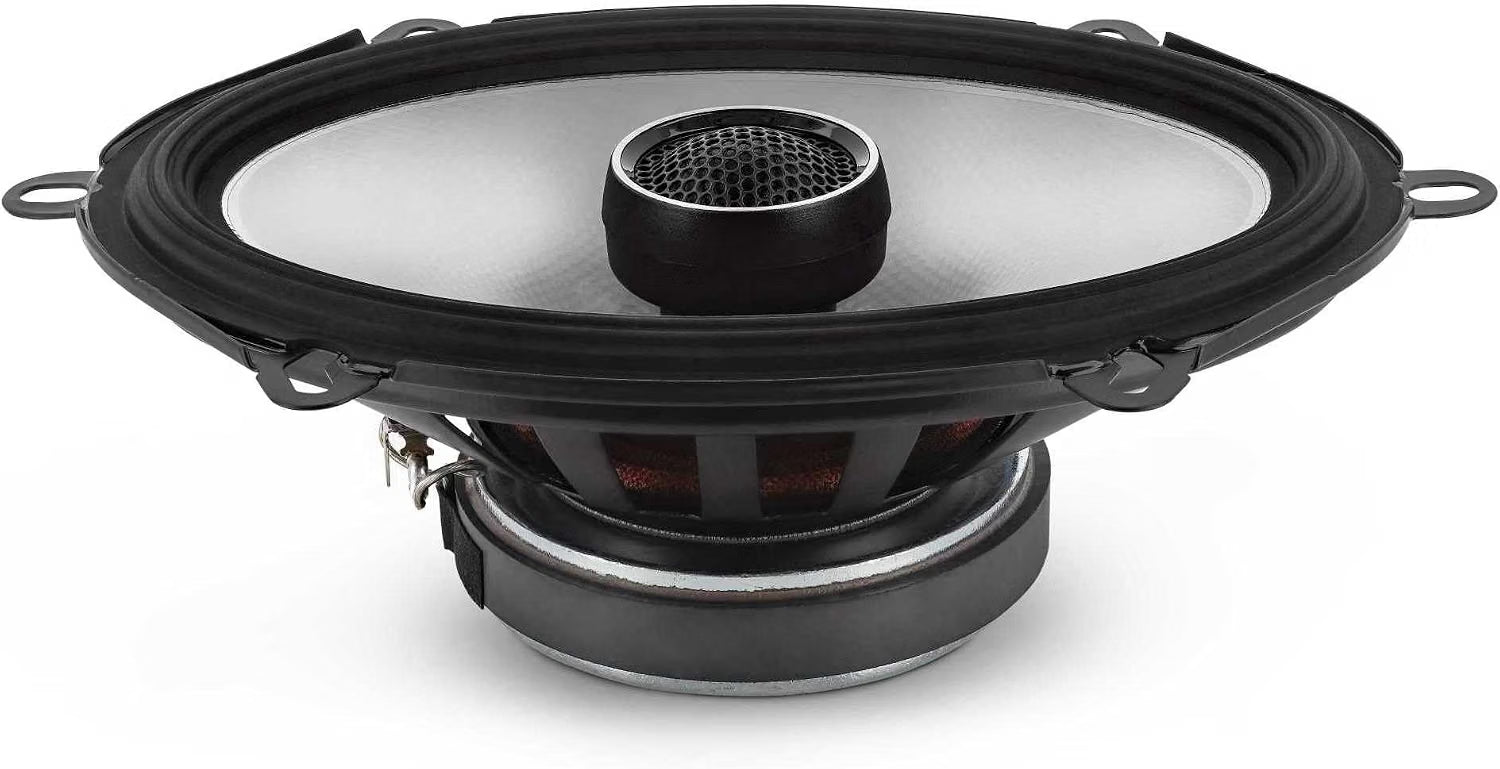

Alpine S2-S68 Next-Generation S-Series 6x8" Coaxial Speakers

This package includes two complete pairs of Alpine S2-S68 6x8-inch coaxial speakers, providing four full-range speakers for a complete front-and-rear speaker upgrade. The Next-Generation S-Series design combines Hi-Res Audio performance with durable cone materials and Alpine's H.A.M.R. surround technology.

S2-S68 Speaker Features

• Includes Two Pairs / Four Speakers

• 6" x 8" Coaxial Speaker Design

• Integrated 1" Coaxial Tweeter

• Hi-Res Audio Certified

• Frequency Response up to 40 kHz

• 230 Watts Maximum Power per Speaker

• 75 Watts RMS Power per Speaker

• Frequency Response: 73 Hz-40 kHz

• Polypropylene, Glass Fiber & Mica Cone Construction

• High-Amplitude Multi-Roll H.A.M.R. Surround

• Designed for Detailed High-Frequency Reproduction

• Strong Midrange & Controlled Bass Response

• Factory Replacement & Aftermarket Audio Compatible

Hi-Res Coaxial Design

Each S2-S68 combines a 6x8-inch woofer with an integrated 1-inch coaxial tweeter. Hi-Res Audio certification and frequency extension up to 40 kHz help reproduce detailed high frequencies while the woofer provides clean midrange and bass performance.

Durable Cone Construction

The polypropylene, glass fiber, and mica cone construction provides a lightweight yet rigid diaphragm designed for accurate sound reproduction, dependable output, and reduced unwanted distortion.

H.A.M.R. Surround Technology

Alpine's High-Amplitude Multi-Roll surround design allows greater cone movement while maintaining control, improving low-frequency output and overall speaker performance.

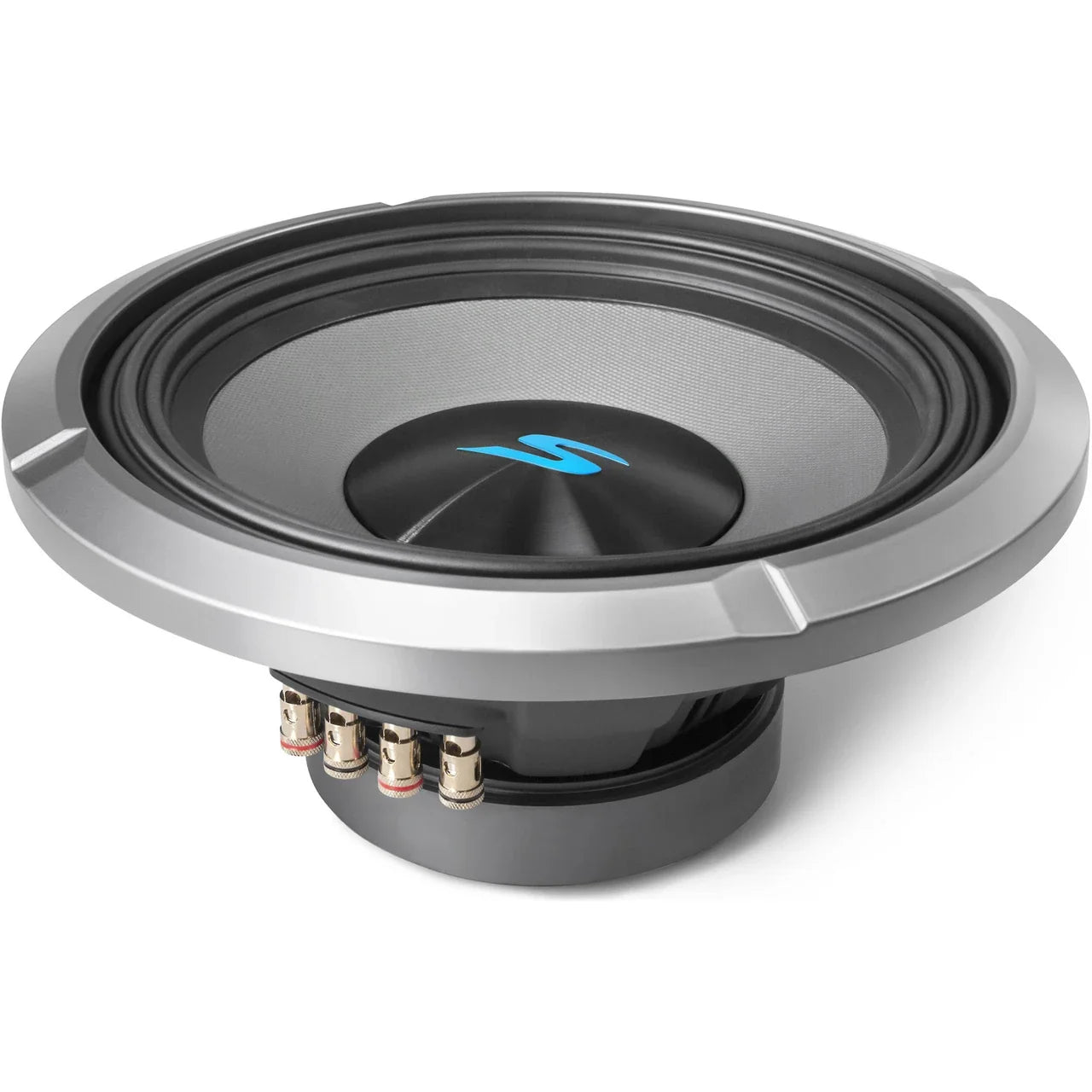

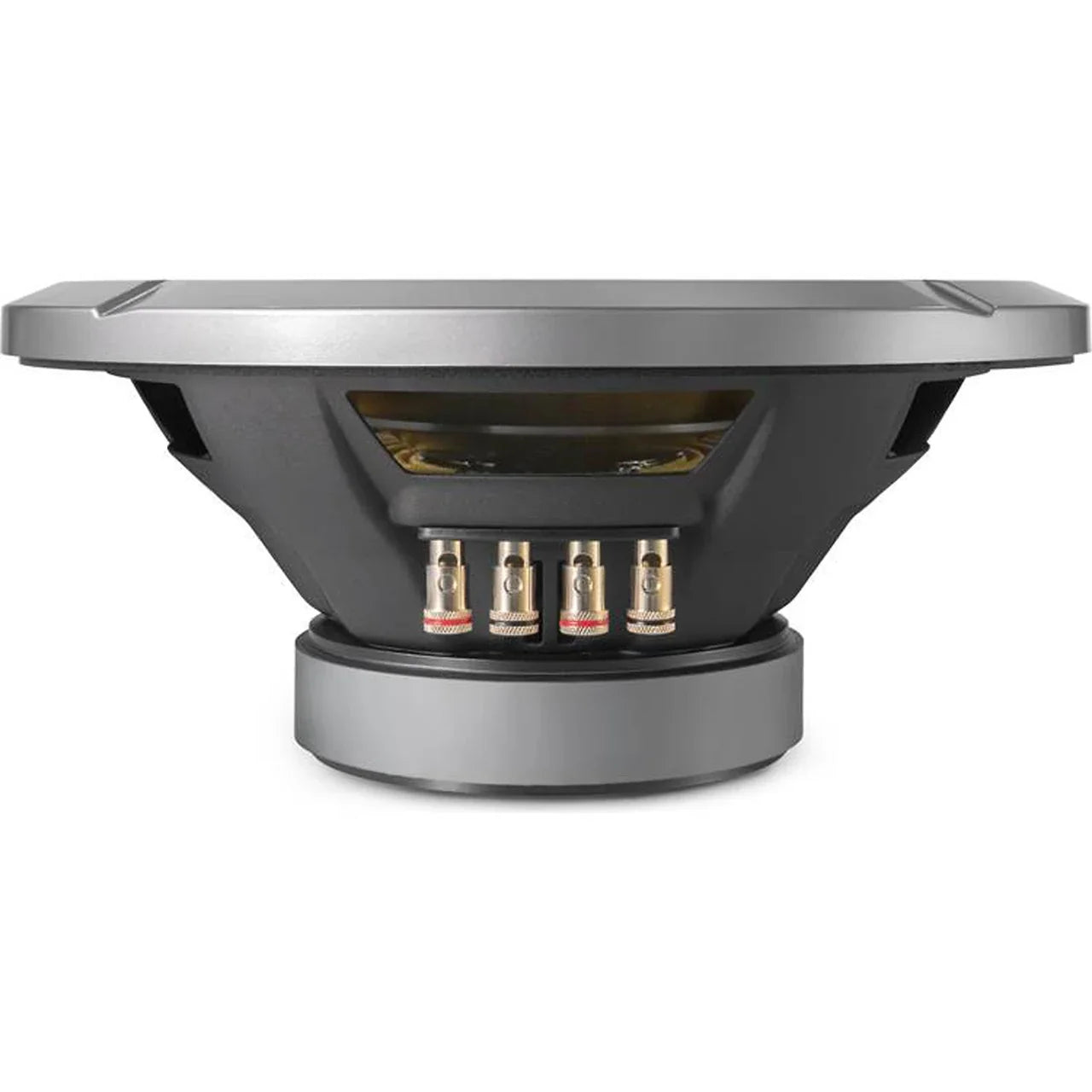

Alpine S2-W12D4 12" Dual 4-Ohm S-Series Subwoofer

The Alpine S2-W12D4 adds powerful low-frequency performance to the system with a 12-inch carbon fiber and polypropylene cone, dual 4-ohm voice coils, and 600 watts RMS power handling. Its flexible DVC configuration allows multiple wiring options for properly matched amplifier systems.

Subwoofer Specifications

• 12" S-Series Subwoofer

• Dual 4-Ohm Voice Coils

• 600 Watts RMS Power Handling

• 1800 Watts Peak Power Handling

• Frequency Response: 23 Hz-215 Hz

• Sensitivity: 86.2 dB

• 2.6" Voice Coil

• X-Max: 15mm One-Way

• 64 oz Magnet

• Carbon Fiber / Polypropylene Cone

• Polypropylene / Ceramic Dust Cap

• High-Grade Strontium Ferrite Magnet

• H.A.M.R. Surround

• Push-Type Speaker Terminals

• Configuration Jumpers

• Twist-Lock Optional Grille Mounting System

Flexible Dual Voice Coil Design

The S2-W12D4 uses dual 4-ohm voice coils, allowing you to configure the subwoofer for different final impedance loads. When you wire the two 4-ohm voice coils in parallel, the subwoofer presents a 2-ohm final load to a compatible mono amplifier channel.

System Power Matching

When the S2-W12D4 is configured for a 2-ohm final load, the S2-A55V subwoofer channel is rated at 300 watts RMS x 1 at 2 ohms. The S2-W12D4 itself is rated to handle up to 600 watts RMS, so the amplifier operates safely below the subwoofer's maximum RMS power-handling capability.

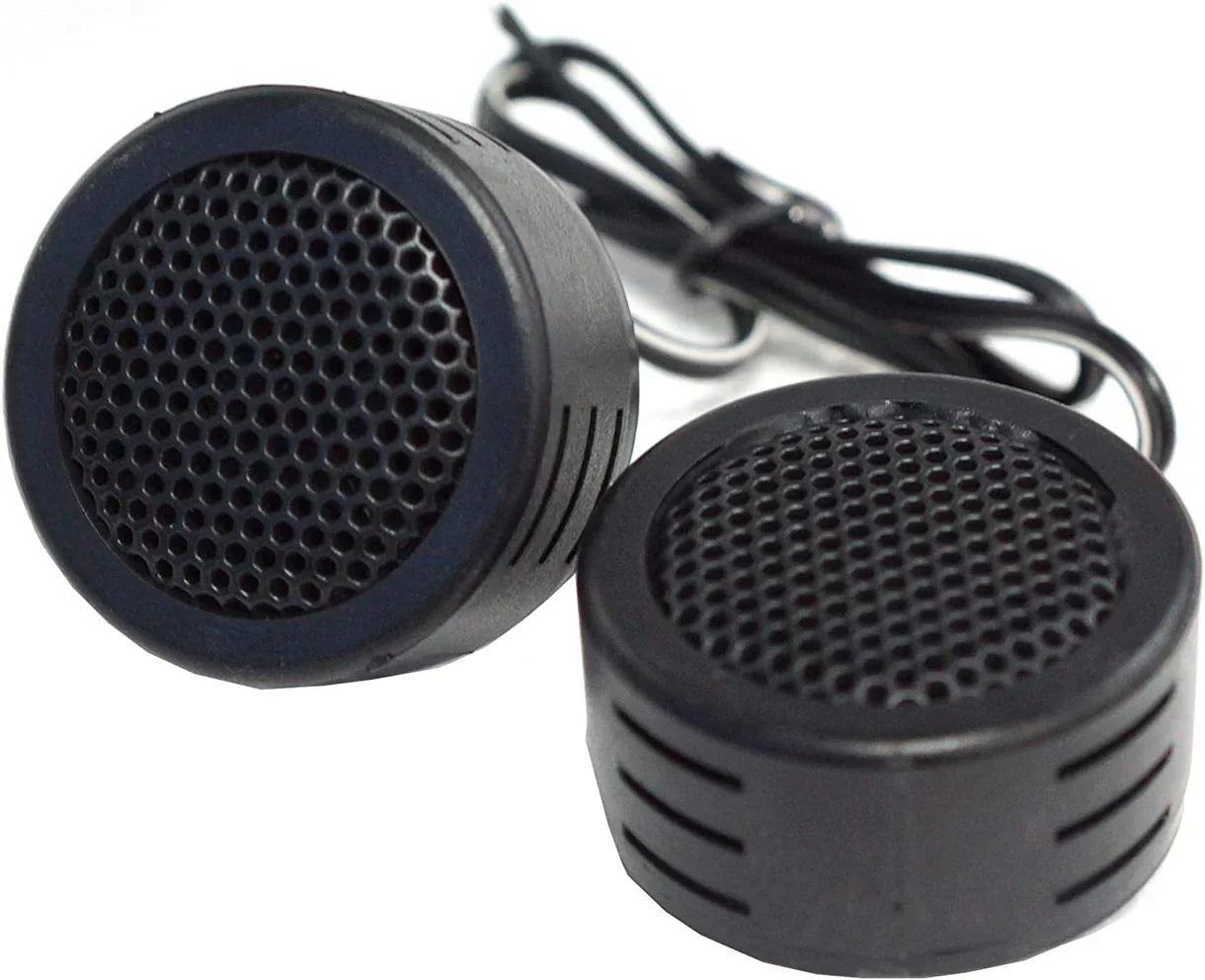

Absolute TW500 Super Tweeters

Enhance the system's high-frequency output with the included Absolute TW500 Super Tweeters, designed to add brighter highs and improved sound presence to compatible automotive audio systems.

TW500 Features

• Pair of Super Tweeters

• High-Efficiency High-Frequency Design

• Compact Construction

• Factory & Aftermarket Audio Compatible

• Designed for Custom Car Audio Installations

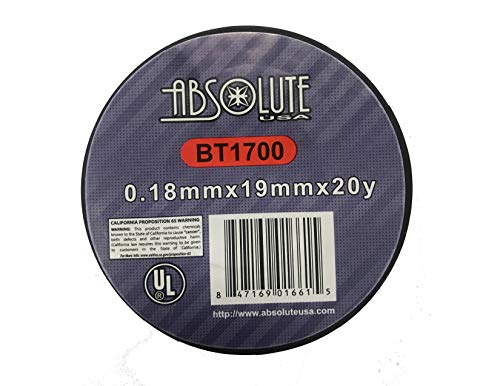

Absolute BT1700 Electrical Tape

The included Absolute BT1700 electrical tape is a useful installation accessory for insulating, securing, and organizing compatible automotive wiring connections.

BT1700 Features

• Automotive Electrical Tape

• High-Adhesion Design

• Heat Resistant

• Flexible PVC Construction

• Ideal for Car Audio Installation Wiring

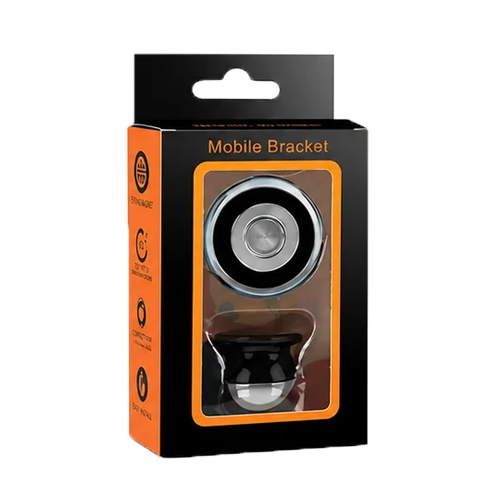

Absolute Universal Mobile Phone Holder

The included universal mobile phone holder provides a convenient mounting solution to keep a compatible smartphone accessible for navigation, music, and hands-free use.

Phone Holder Features

• Universal Smartphone Compatibility

• Adjustable Viewing Angle

• Secure Grip Design

• Convenient In-Vehicle Installation

• Suitable for Navigation & Everyday Phone Access

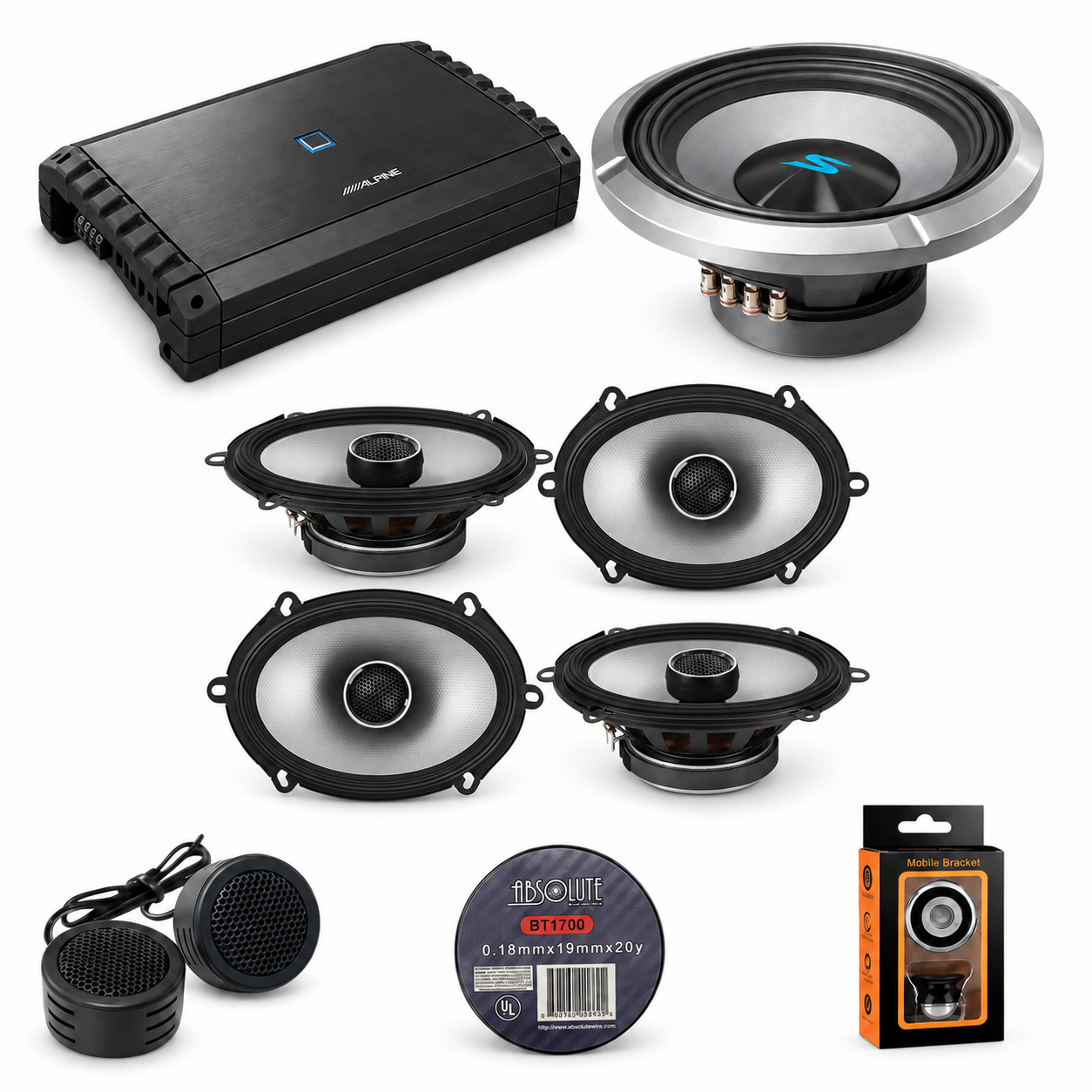

What's in this Package

• (1) Alpine S2-A55V 5-Channel Class-D Amplifier

• (2) Pairs Alpine S2-S68 6x8" Coaxial Speakers - 4 Speakers Total

• (1) Alpine S2-W12D4 12" Dual 4-Ohm Subwoofer

• (1 Pair) Absolute TW500 Super Tweeters

• (1) Absolute BT1700 Electrical Tape

• (1) Absolute Universal Mobile Phone Holder

Optional Accessories

• Alpine RUX-KNOB.2 Remote Bass Control - Sold Separately

• Alpine RUX-H01 Remote Bass Control - Sold Separately

• Compatible Protective Grille for S2-W12D4 - Sold Separately

Installation Notes

• The S2-W12D4 is a dual 4-ohm subwoofer. Wiring both voice coils in parallel creates a 2-ohm final load.

• At a 2-ohm subwoofer load, the S2-A55V is rated at 300 watts RMS x 1 on its subwoofer channel.

• The S2-W12D4 is rated for 600 watts RMS power handling; this does not mean the included S2-A55V supplies 600 watts to the subwoofer.

• The S2-S68 speakers are rated for up to 75 watts RMS each. The S2-A55V supplies up to 40 watts RMS x 4 at 4 ohms or 60 watts RMS x 4 at 2 ohms.

• A properly sized amplifier wiring kit, fuse protection, speaker wire, subwoofer enclosure, and additional installation accessories may be required.

• Verify speaker mounting dimensions and vehicle compatibility before installation.

• Professional installation is recommended.
