Alpine PXE-C60-60 Processor + S2-A36F 4-Ch Amp + S2-A60M Mono Amp + Accessory Bundle

Alpine PXE-C60-60 OPTIM6 Processor + S2-A36F 4-Channel Amp + S2-A60M Mono Amp + Absolute Accessory Bundle

Upgrade your vehicle audio system with a complete Alpine signal-processing and amplification package featuring the PXE-C60-60 OPTIM6 6-channel Hi-Res sound processor, S2-A36F 4-channel Class-D amplifier, and S2-A60M mono subwoofer amplifier. This combination provides advanced automatic sound tuning, detailed EQ and time correction, four channels of full-range amplification, and dedicated high-power subwoofer control for factory or aftermarket audio systems.

General Features

• Includes Alpine PXE-C60-60 OPTIM6 6-Channel Sound Processor

• Includes Alpine S2-A36F 4-Channel Class-D Amplifier

• Includes Alpine S2-A60M Mono Class-D Subwoofer Amplifier

• Hi-Res Audio Processing up to 96 kHz / 24-Bit

• Automatic & Manual Sound Tuning

• 31-Band Parametric & Graphic EQ

• Time Correction & Crossover Control

• Six 4V RCA Outputs

• Coaxial & USB Digital Inputs

• S2-A36F Hi-Res Audio Certified up to 40 kHz

• 60W RMS x 4 at 4 Ohms

• 90W RMS x 4 at 2 Ohms

• 180W RMS x 2 Bridged at 4 Ohms

• Dedicated S2-A60M Subwoofer Amplification

• Up to 600 Watts RMS Subwoofer Power

• Factory & Aftermarket Audio System Compatible

• Includes Absolute TW500 Super Tweeters

• Includes Absolute BT1700 Electrical Tape

• Includes Absolute Universal Mobile Phone Holder

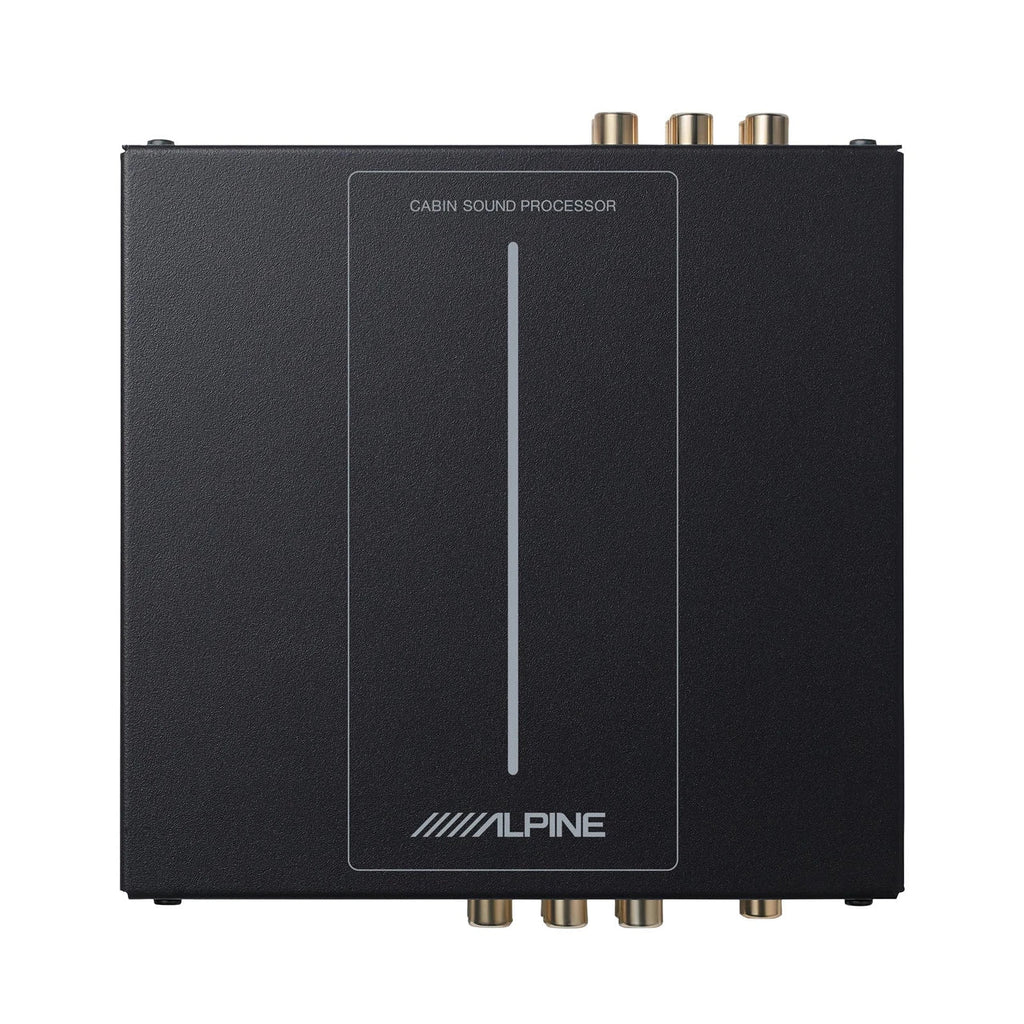

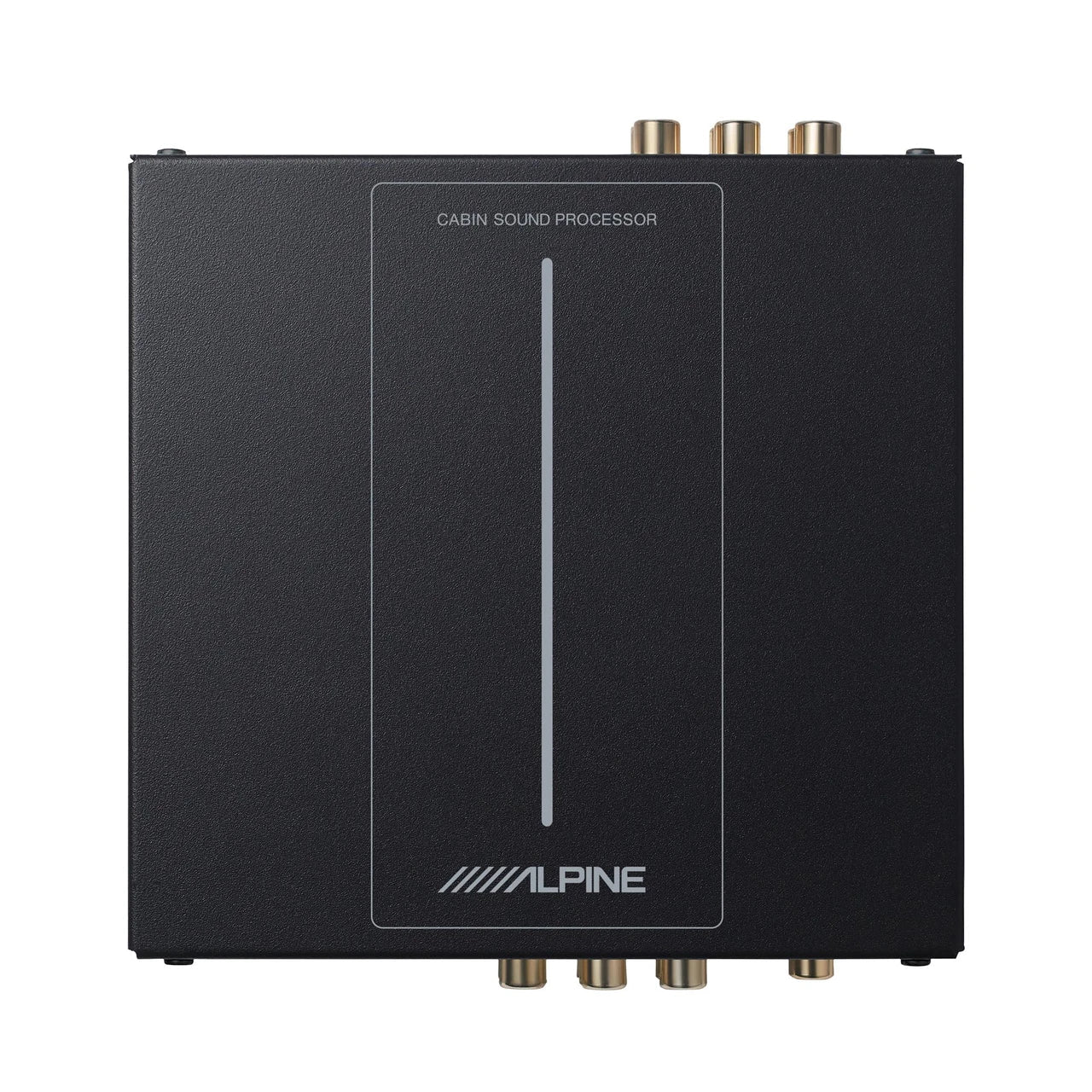

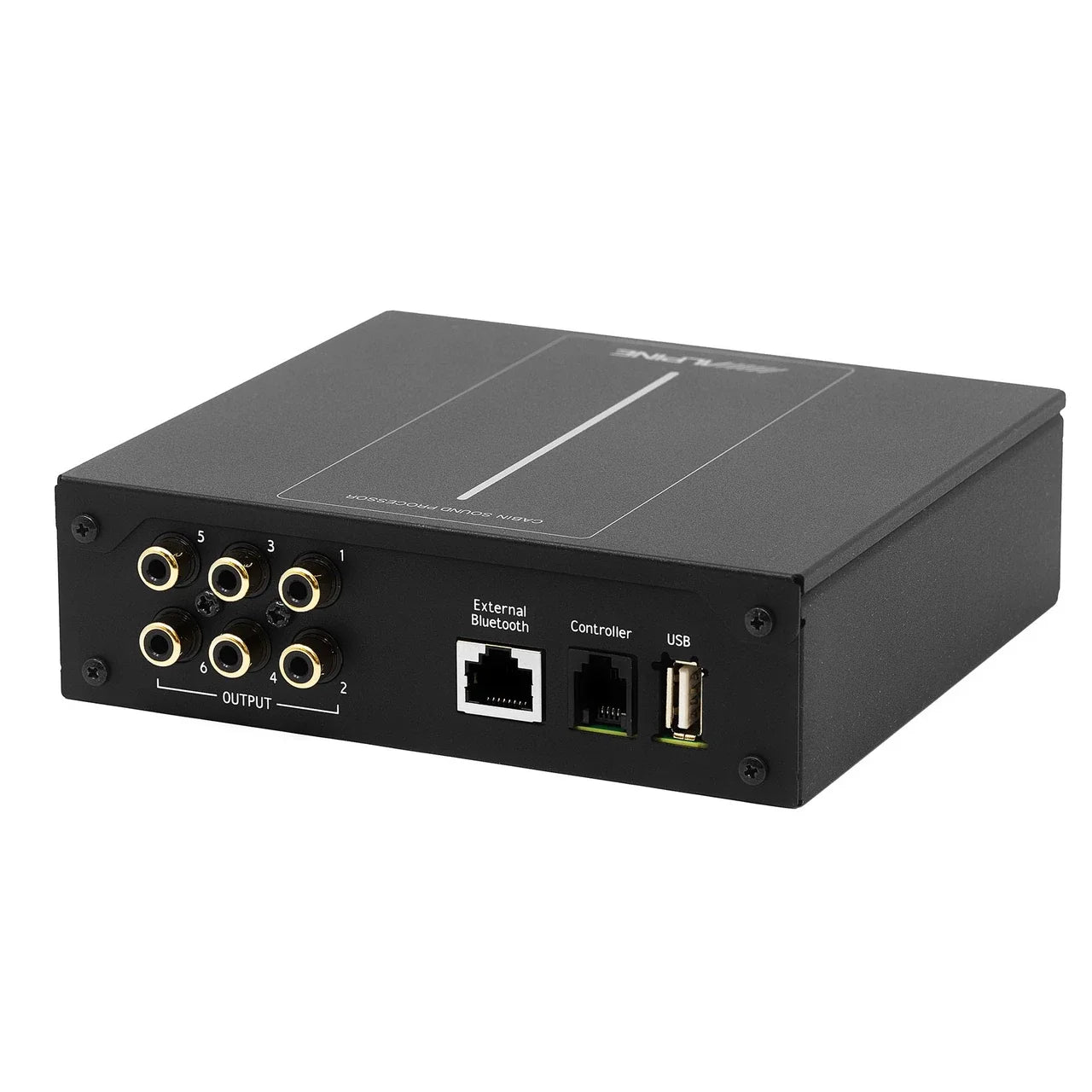

Alpine PXE-C60-60 OPTIM6 6-Channel Hi-Res Sound Processor

The Alpine PXE-C60-60 OPTIM6 is an advanced 6-channel sound processor designed to measure, correct, and fine-tune a vehicle's audio system. Its automated tuning capabilities make it easier to achieve a balanced listening environment while still providing extensive manual controls for experienced installers and audio enthusiasts.

Automatic Sound Tuning

OPTIM6 works with the OPTIM iOS App for compatible iPhone and iPad devices or the PC tuning application. With the optional KTX-CSP1 external microphone, the system can measure the vehicle's acoustic environment and use Auto-EQ technology to optimize frequency response.

Advanced Audio Processing

• Automatic Sound Tuning

• Approximately 5-Minute Guided Tuning Process

• Manual & Automatic Tuning Capability

• 31-Band Parametric EQ

• 31-Band Graphic EQ

• Crossover Adjustment

• Digital Time Correction

• Anti-EQ Processing

• Auto-EQ with APVD Measurement Collection

• Six User Presets

• Included OPTIM6 Controller

• Designed for Factory & Aftermarket Audio Systems

Hi-Res Digital Processing

• Hi-Res Audio Playback Support

• Up to 96 kHz / 24-Bit Processing

• Wide-Bandwidth Digital Audio Platform

• Designed for Detailed High-Resolution Sound Reproduction

OPTIM6 Connectivity

• 6-Channel 4V RCA Outputs

• Coaxial Digital Input

• USB Digital Input with DAC

• Speaker-Level Input up to 30V

• Compatible with Factory & Aftermarket Source Units

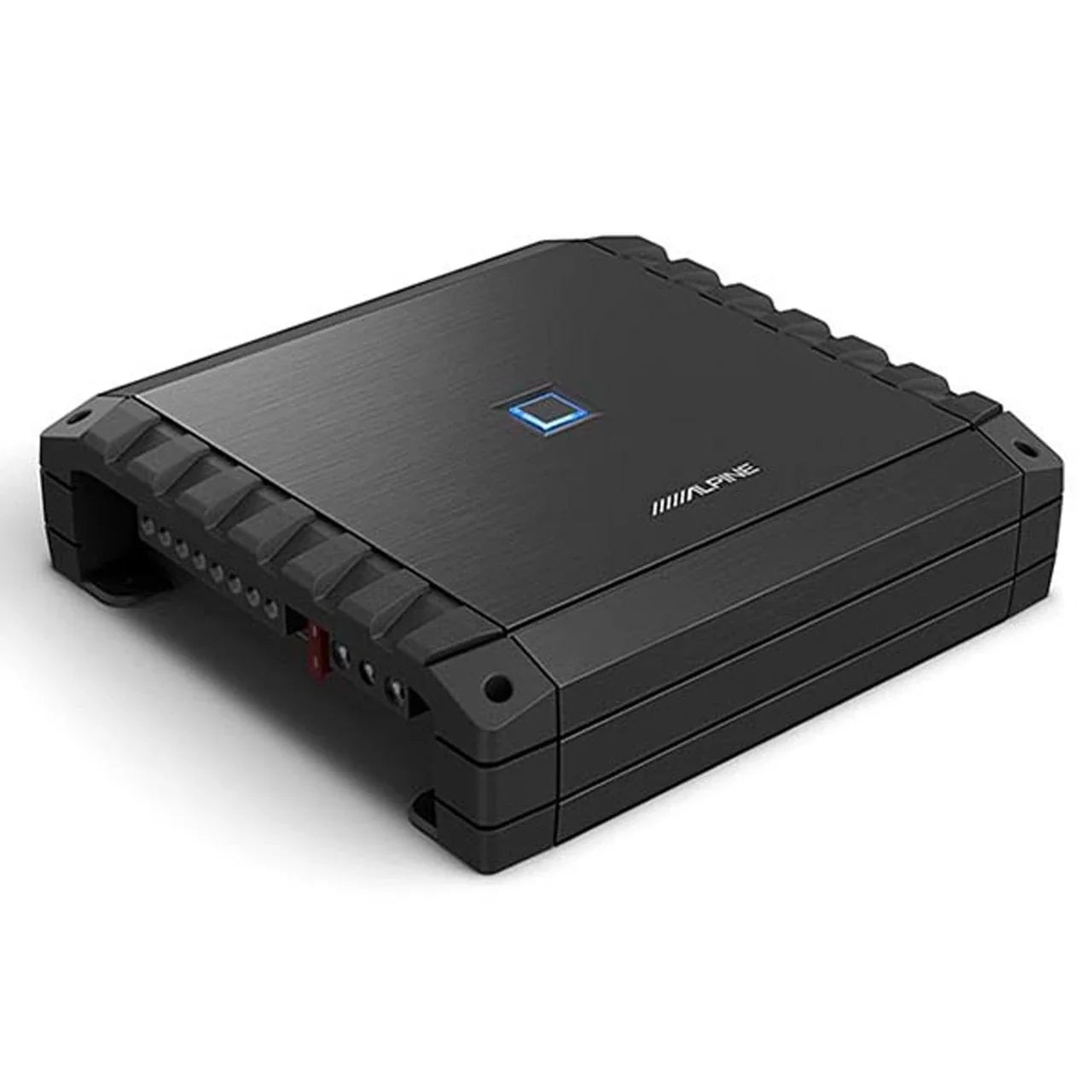

Alpine S2-A36F S-Series 4-Channel Class-D Amplifier

The Alpine S2-A36F provides four channels of efficient Class-D amplification for front and rear speakers or other compatible full-range system configurations. Hi-Res Audio certification, adjustable crossovers, and variable Mid-Bass EQ give you the flexibility to build and tune a high-quality vehicle audio system.

S2-A36F Power Specifications

• 4-Channel Class-D Amplifier

• 60 Watts RMS x 4 at 4 Ohms

• 90 Watts RMS x 4 at 2 Ohms

• 180 Watts RMS x 2 Bridged at 4 Ohms

• Hi-Res Audio Certified

• Frequency Response: 20 Hz-40 kHz

• THD+N: Less Than 0.1% at 14.4V

• Signal-to-Noise Ratio: Greater Than 83 dB

• Damping Factor: Greater Than 100

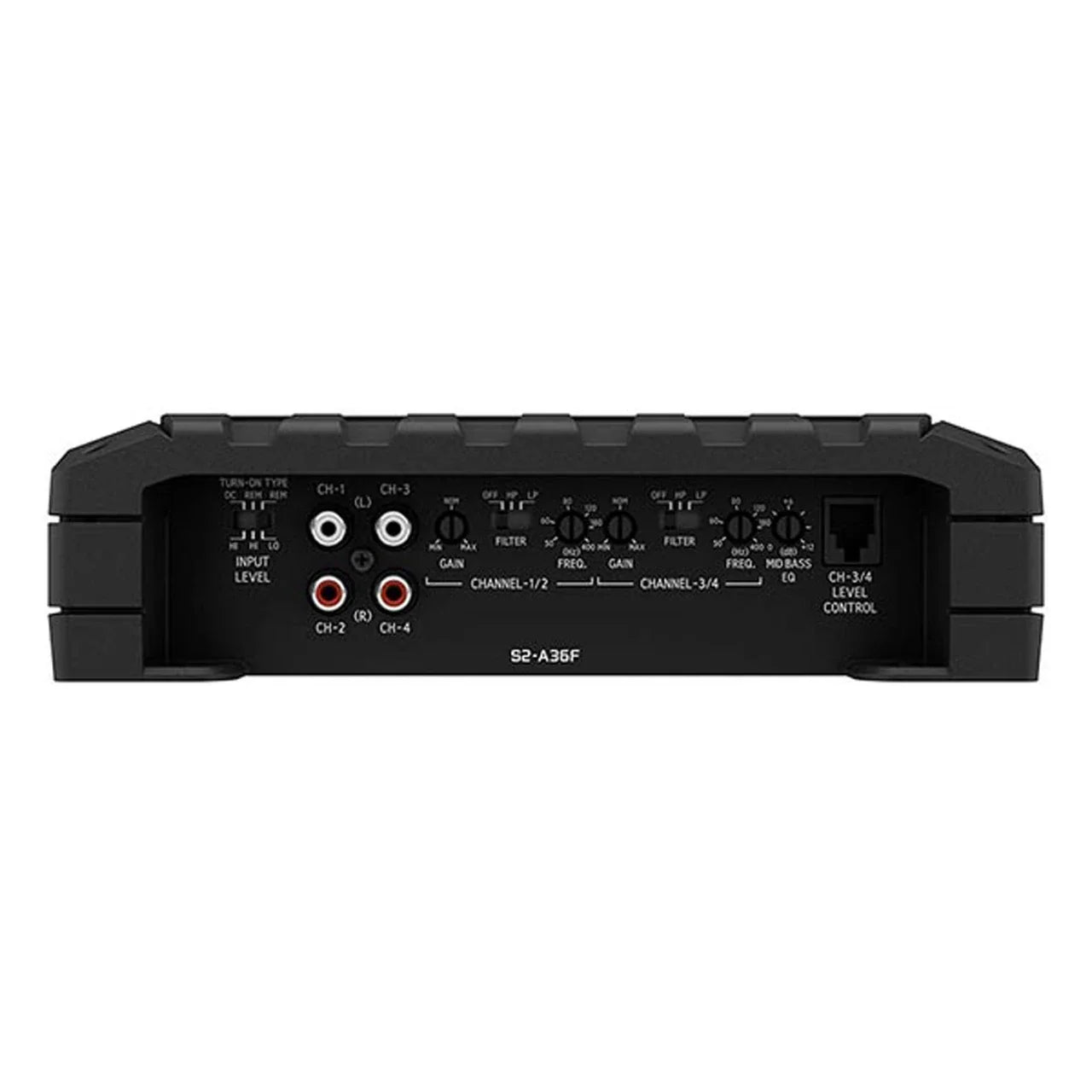

S2-A36F Features

• Alpine Class-D Amplifier Circuit

• Four-Channel Full-Range Design

• Built-In Selectable Crossovers

• Adjustable Crossover Controls

• Variable Mid-Bass EQ

• Selectable Three-Position Remote Turn-On Circuit

• Factory & Aftermarket System Integration

• Two-Sided Terminal Layout

• Compact Installation Design

S2-A36F Dimensions

• Width: 8.7"

• Height: 2.25"

• Depth: 8.25"

• Weight: Approximately 4 lbs 13 oz

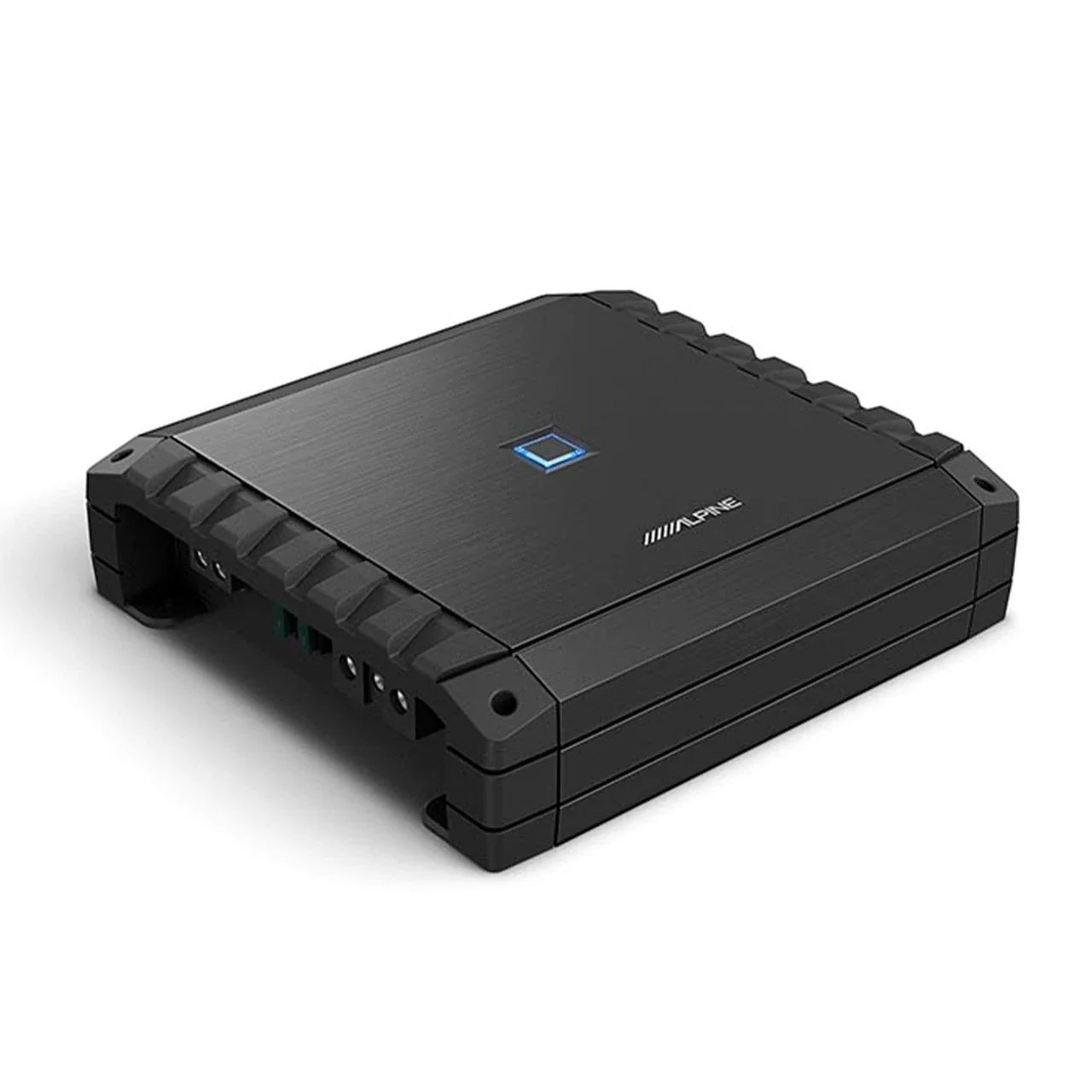

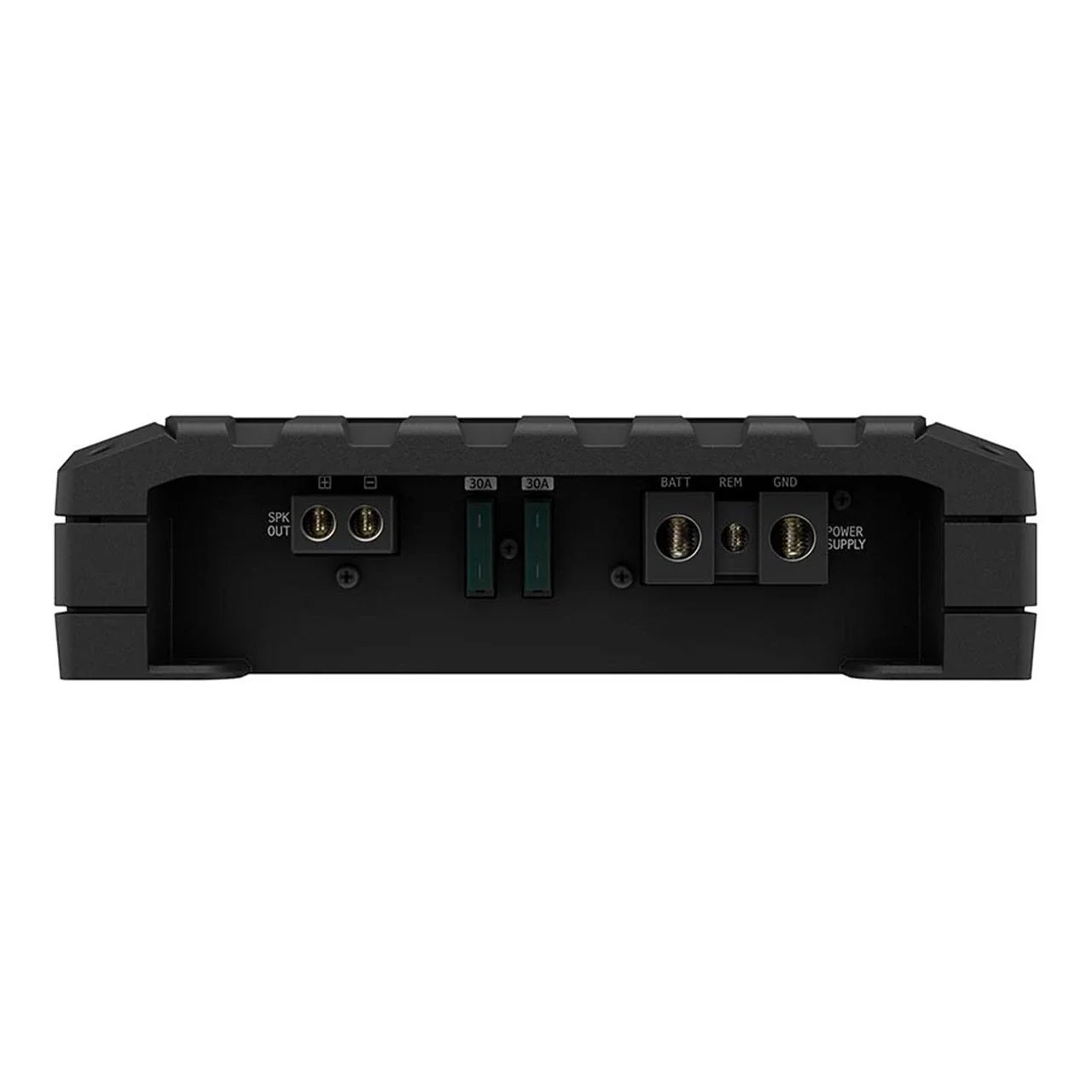

Alpine S2-A60M Mono Class-D Subwoofer Amplifier

The Alpine S2-A60M is a compact mono Class-D amplifier designed specifically for dedicated subwoofer systems. Its efficient digital amplifier circuit delivers powerful low-frequency output while keeping a compact footprint for installations with limited space.

S2-A60M Features

• Mono Class-D Subwoofer Amplifier

• Up to 600 Watts RMS Output

• Dedicated Low-Frequency Amplification

• Adjustable Low-Pass Crossover

• Adjustable Gain Control

• Bass EQ

• Remote Bass Control Ready

• Speaker-Level Input

• Automatic Power-On with High-Level Input

• Thermal Management Control

• LED Power / Status Indicator

• Compact Installation Footprint

• Improved Heat Sink Design

• Amplifier Protection Circuit

S2-A60M Specifications

• Amplifier Type: Class-D Digital

• Channel Configuration: Mono

• Power Requirement: 14.4V DC

• Allowable Voltage Range: 9-16V

• RCA Input Sensitivity High: 0.5-10V

• RCA Input Sensitivity Low: 0.2-4.0V

• Frequency Response: 10 Hz-400 Hz

• THD+N: Less Than 0.03% at 10W into 4 Ohms

• THD+N: Less Than 0.08% at 50W into 4 Ohms

• Damping Factor: Greater Than 1000

• Signal-to-Noise Ratio: Greater Than 105 dB at 50W into 4 Ohms

• Recommended Power Cable: 4 AWG

• Recommended Speaker Cable: 8 AWG

• Weight: Approximately 1.9 kg

• Approximate Chassis Size: 204mm x 204mm

Complete Processing & Amplification System

The PXE-C60-60 OPTIM6 provides the signal processing and system tuning, the S2-A36F supplies four channels of full-range amplification, and the S2-A60M provides dedicated power for a compatible subwoofer system. Together, these components create a flexible foundation for a high-performance factory-integration or aftermarket car audio system.

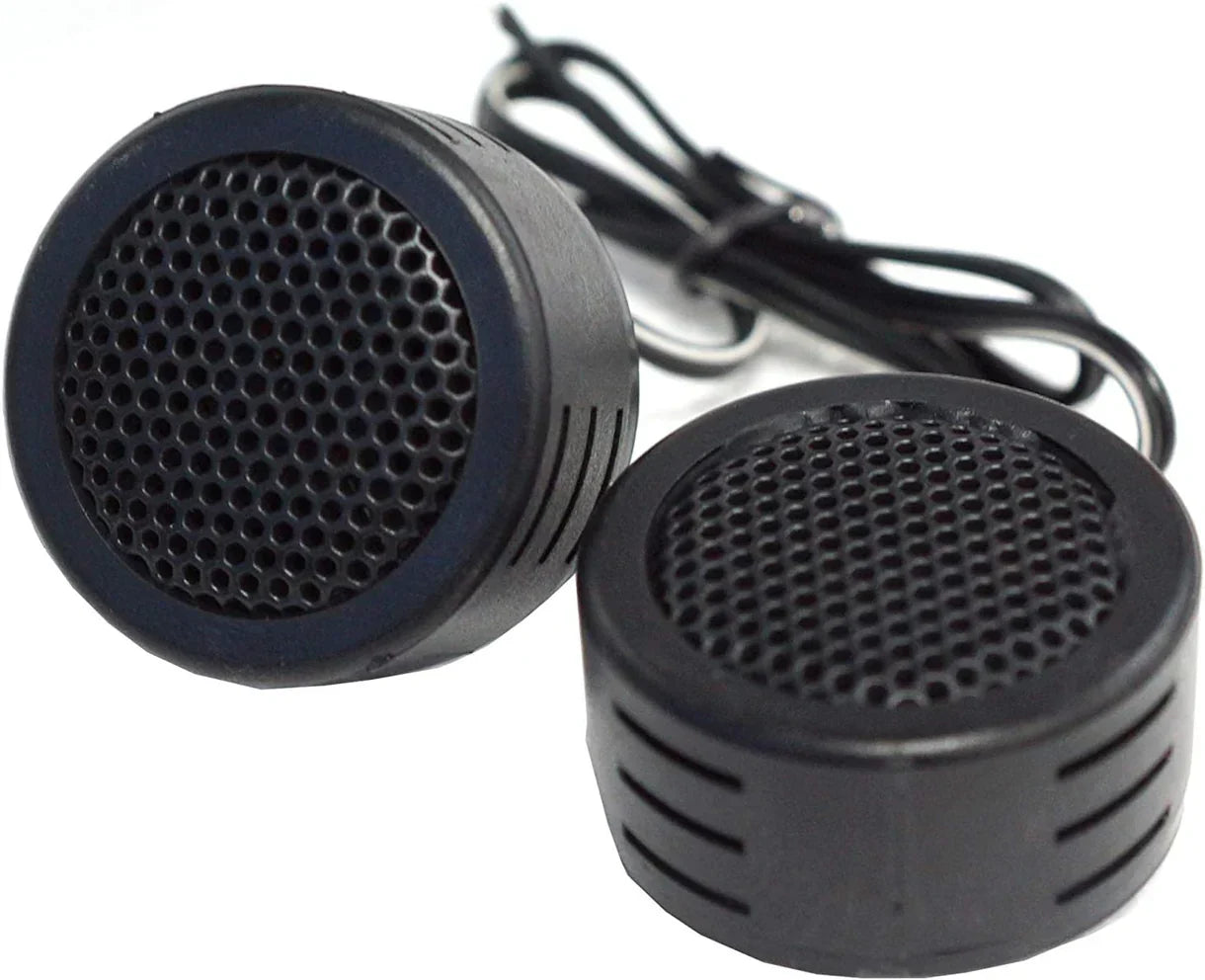

Absolute TW500 Super Tweeters

Enhance the system's high-frequency output with the included Absolute TW500 Super Tweeters, designed to add brighter highs and increased sound presence to compatible automotive audio systems.

TW500 Features

• Pair of Super Tweeters

• High-Efficiency High-Frequency Design

• Compact Construction

• Factory & Aftermarket Audio Compatible

• Designed for Custom Car Audio Installations

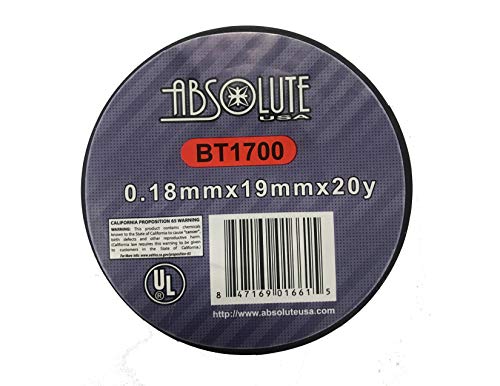

Absolute BT1700 Electrical Tape

The included Absolute BT1700 electrical tape provides a useful installation accessory for insulating, securing, and organizing compatible automotive wiring connections.

BT1700 Features

• Automotive Electrical Tape

• High-Adhesion Design

• Heat Resistant

• Flexible PVC Construction

• Ideal for Car Audio Installation Wiring

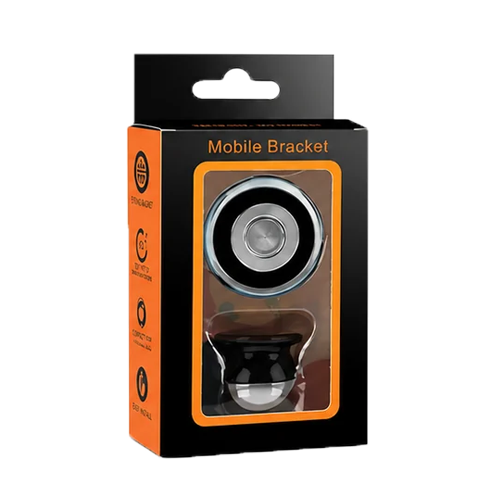

Absolute Universal Mobile Phone Holder

The included universal mobile phone holder provides a convenient way to keep a compatible smartphone securely mounted and accessible for navigation, music, and other everyday applications.

Phone Holder Features

• Universal Smartphone Compatibility

• Adjustable Viewing Angle

• Secure Grip Design

• Convenient In-Vehicle Installation

• Suitable for Navigation & Everyday Smartphone Access

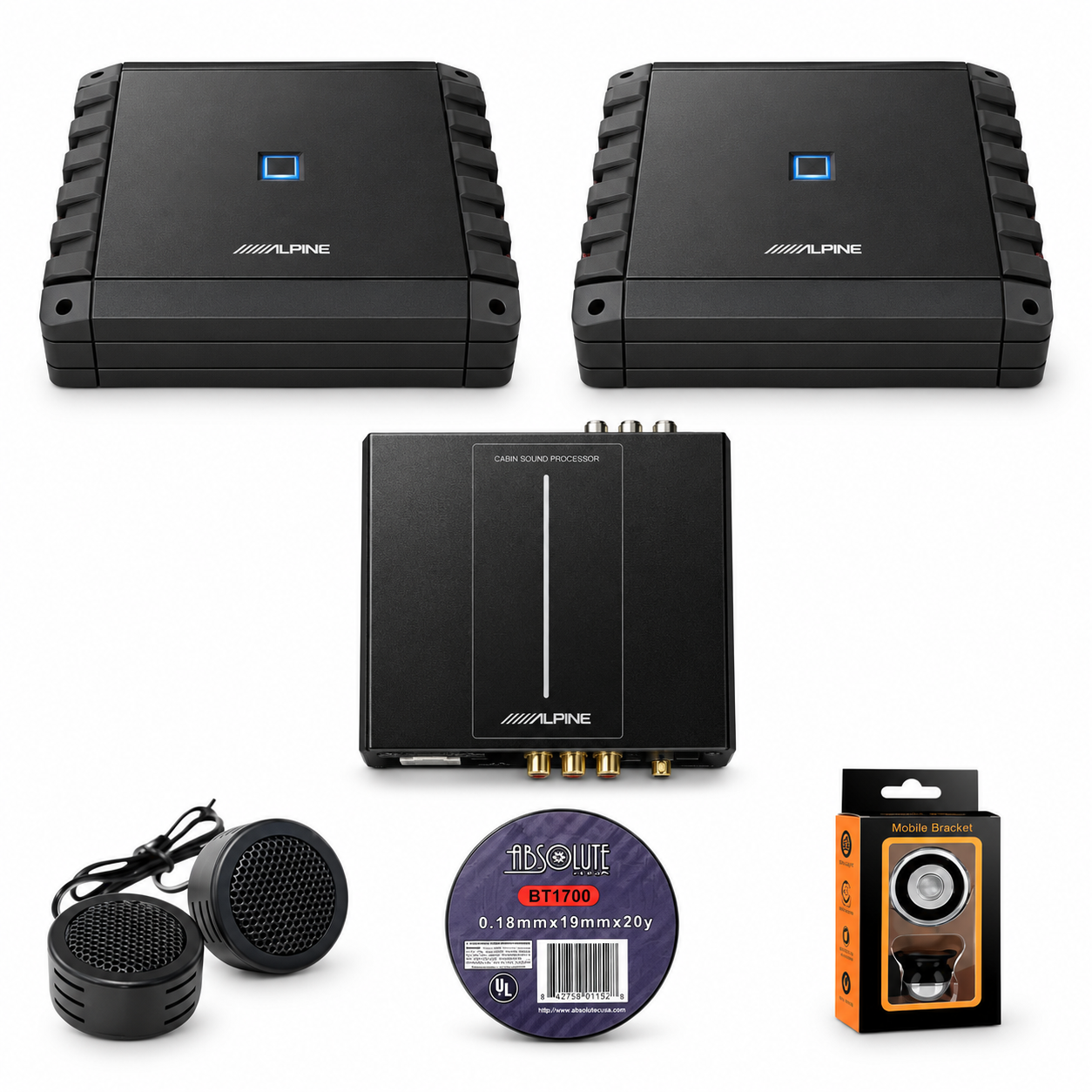

What's in this Package

• (1) Alpine PXE-C60-60 OPTIM6 6-Channel Hi-Res Sound Processor

• (1) Alpine S2-A36F S-Series 4-Channel Class-D Amplifier

• (1) Alpine S2-A60M S-Series Mono Class-D Subwoofer Amplifier

• (1 Pair) Absolute TW500 Super Tweeters

• (1) Absolute BT1700 Electrical Tape

• (1) Absolute Universal Mobile Phone Holder

Optional Accessories

• Alpine KTX-CSP1 External Tuning Microphone - Sold Separately

• AUX Cable for PC Tuning - Sold Separately

• Compatible Alpine Remote Bass Controller - Sold Separately

Installation Notes

• You may need a properly sized amplifier power wiring kit, distribution hardware, fuse protection, ground wiring, speaker wire, RCA or signal wiring, and other installation accessories.

• The S2-A36F is designed for full-range speaker amplification, while the S2-A60M provides dedicated mono amplification for a compatible subwoofer system.

• Match subwoofer impedance and power handling to the S2-A60M before installation.

• The KTX-CSP1 external microphone is required for applicable acoustic measurement and automatic tuning functions and is sold separately.

• Verify system configuration, vehicle compatibility, available installation space, and electrical requirements before installation.

• Professional installation and system tuning are recommended.
